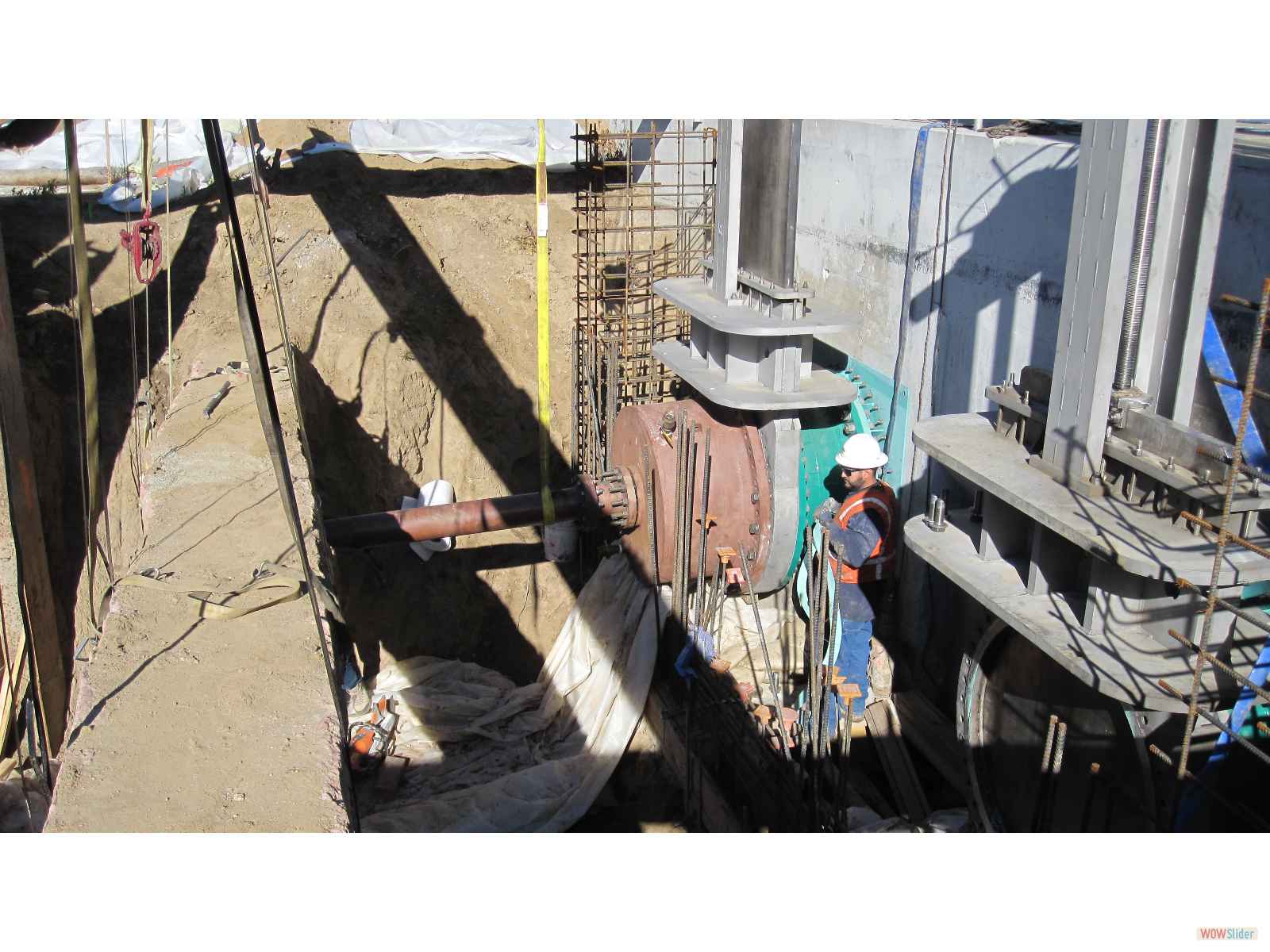

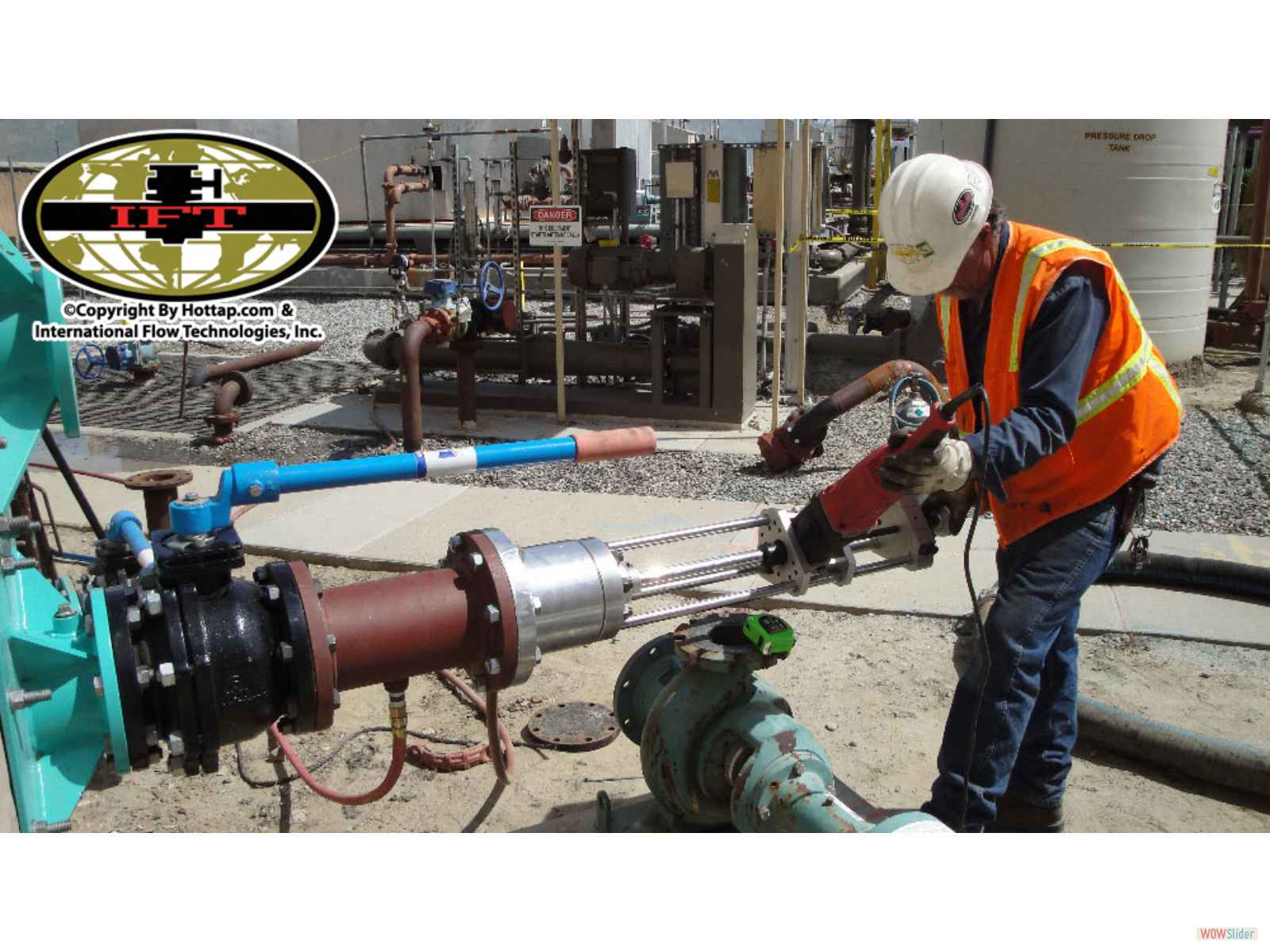

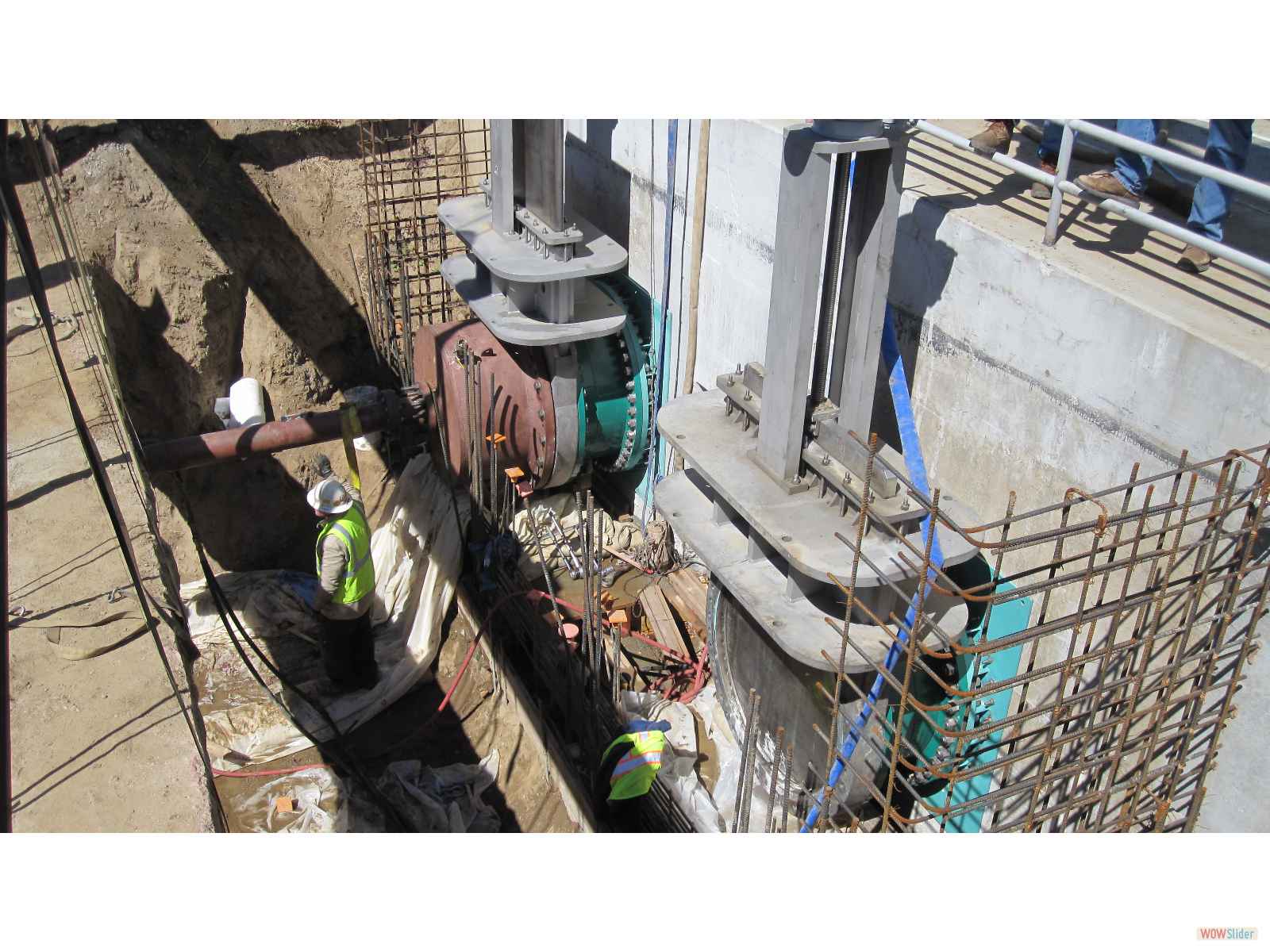

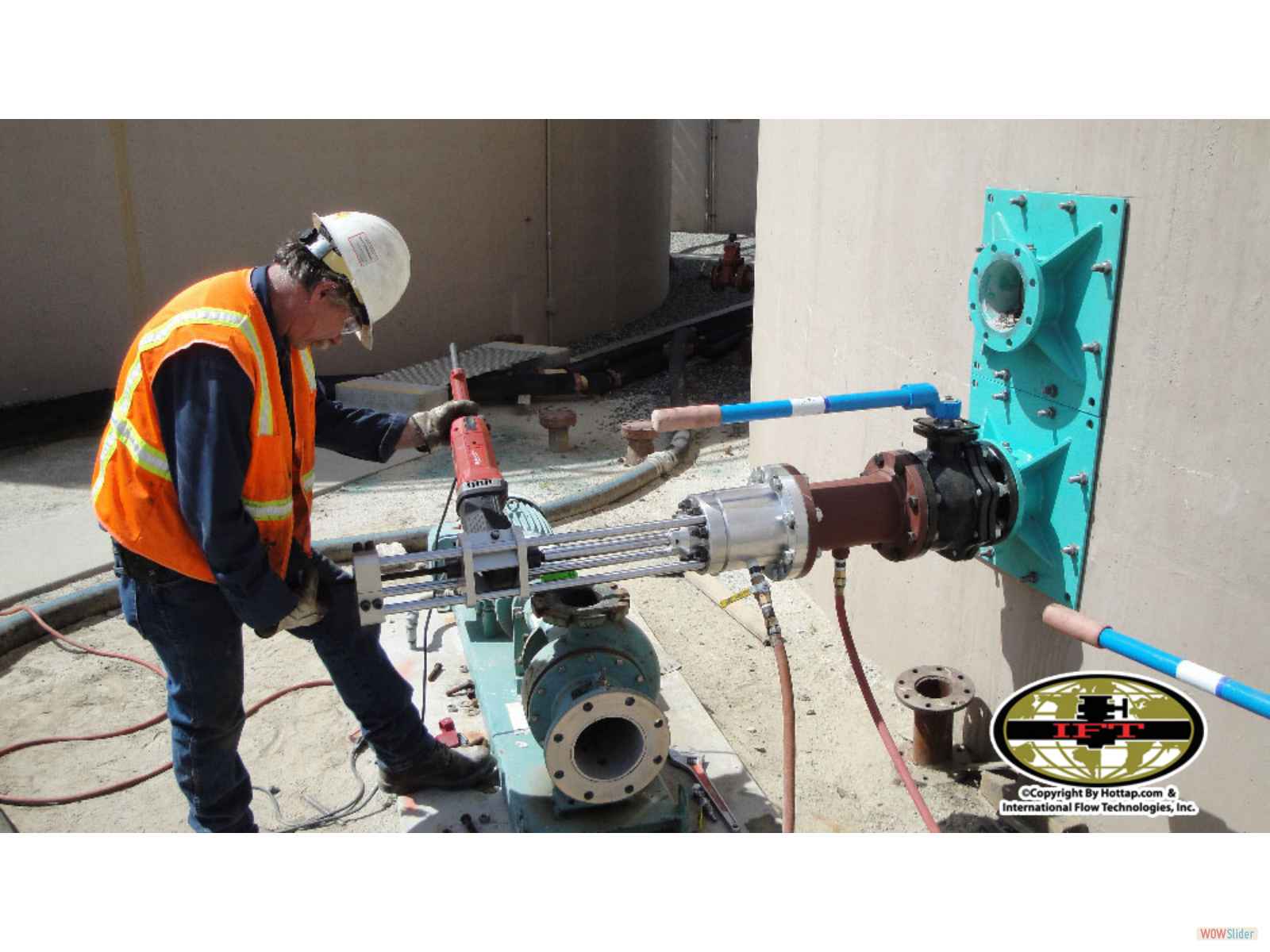

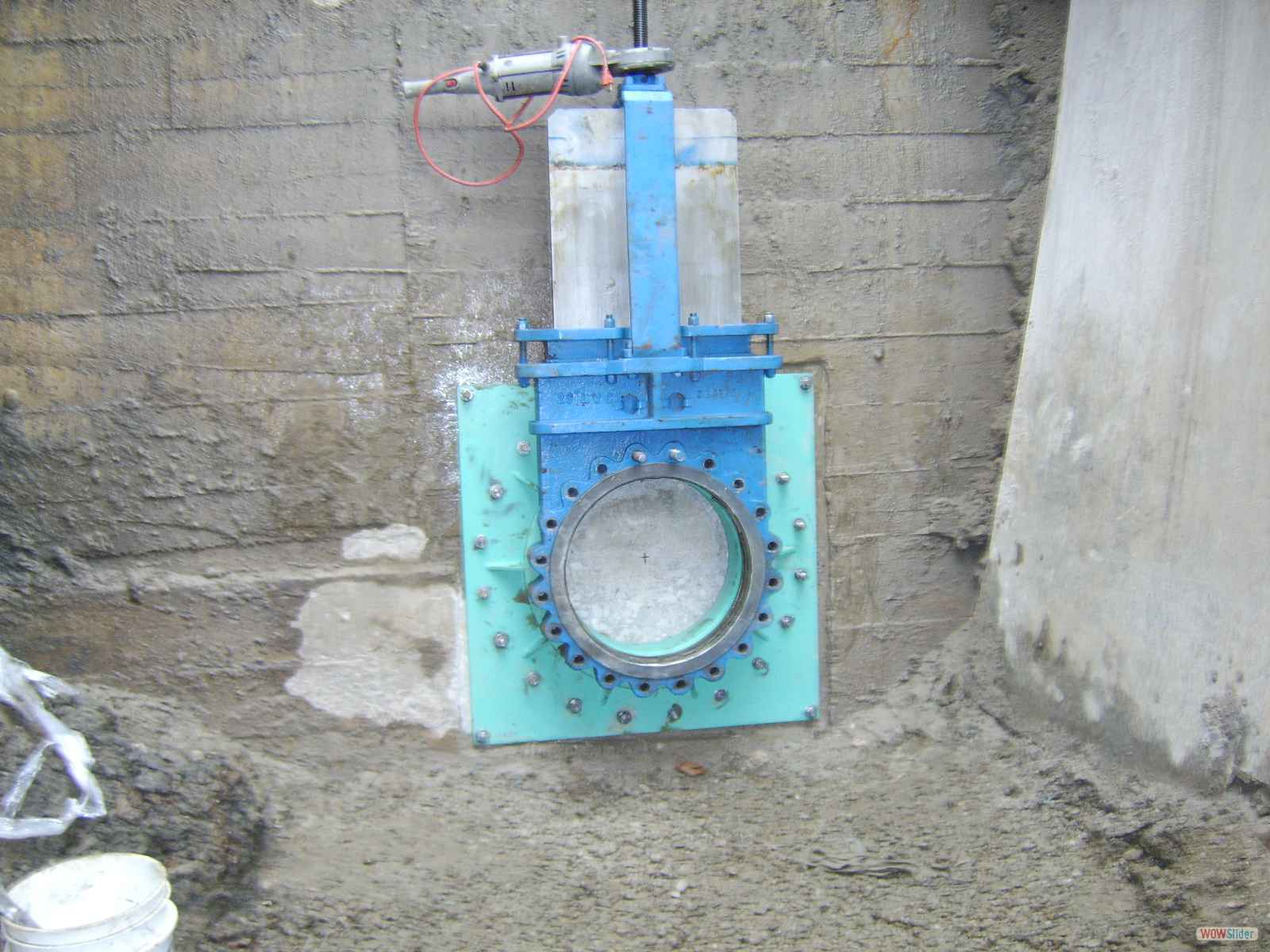

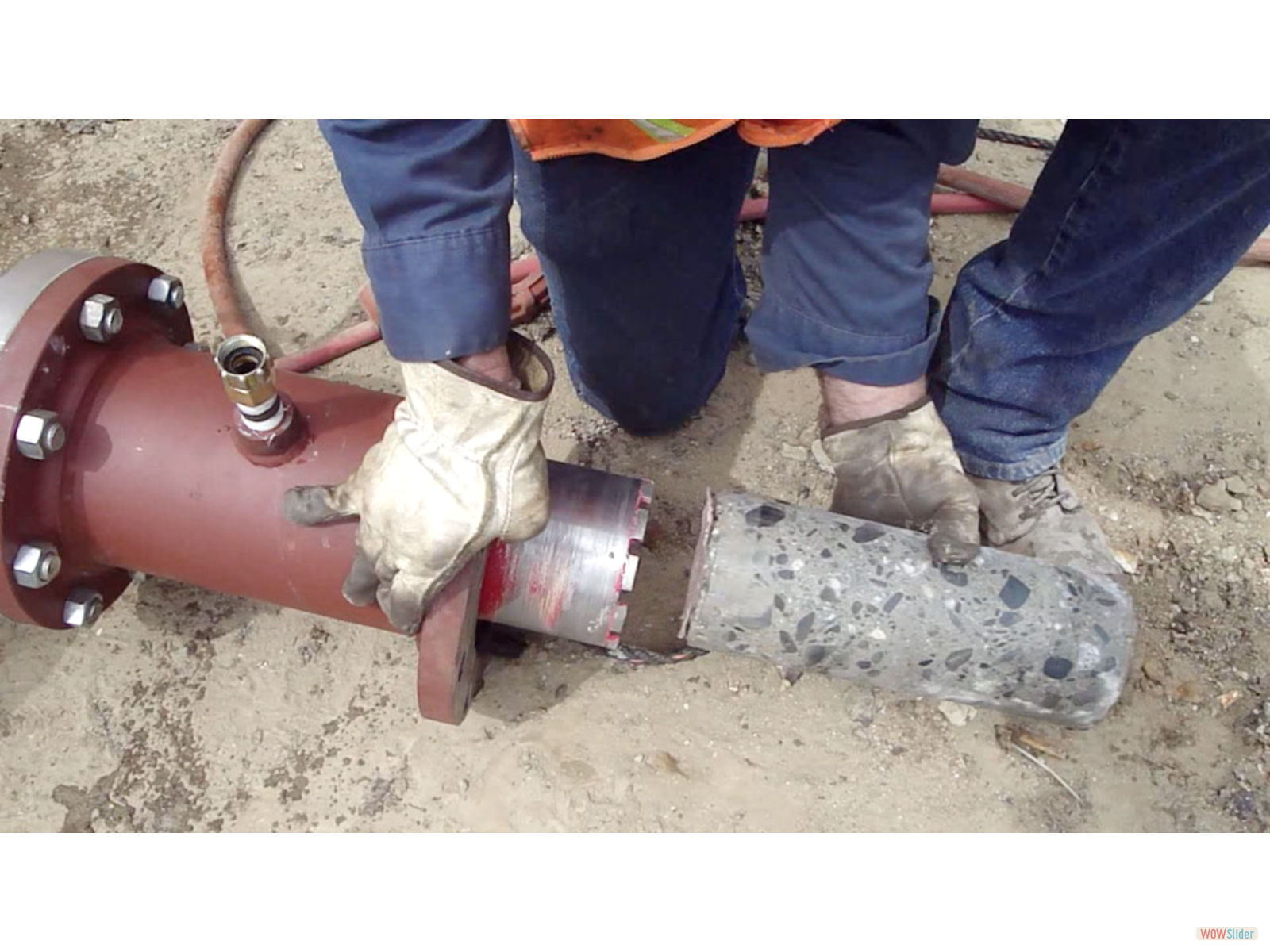

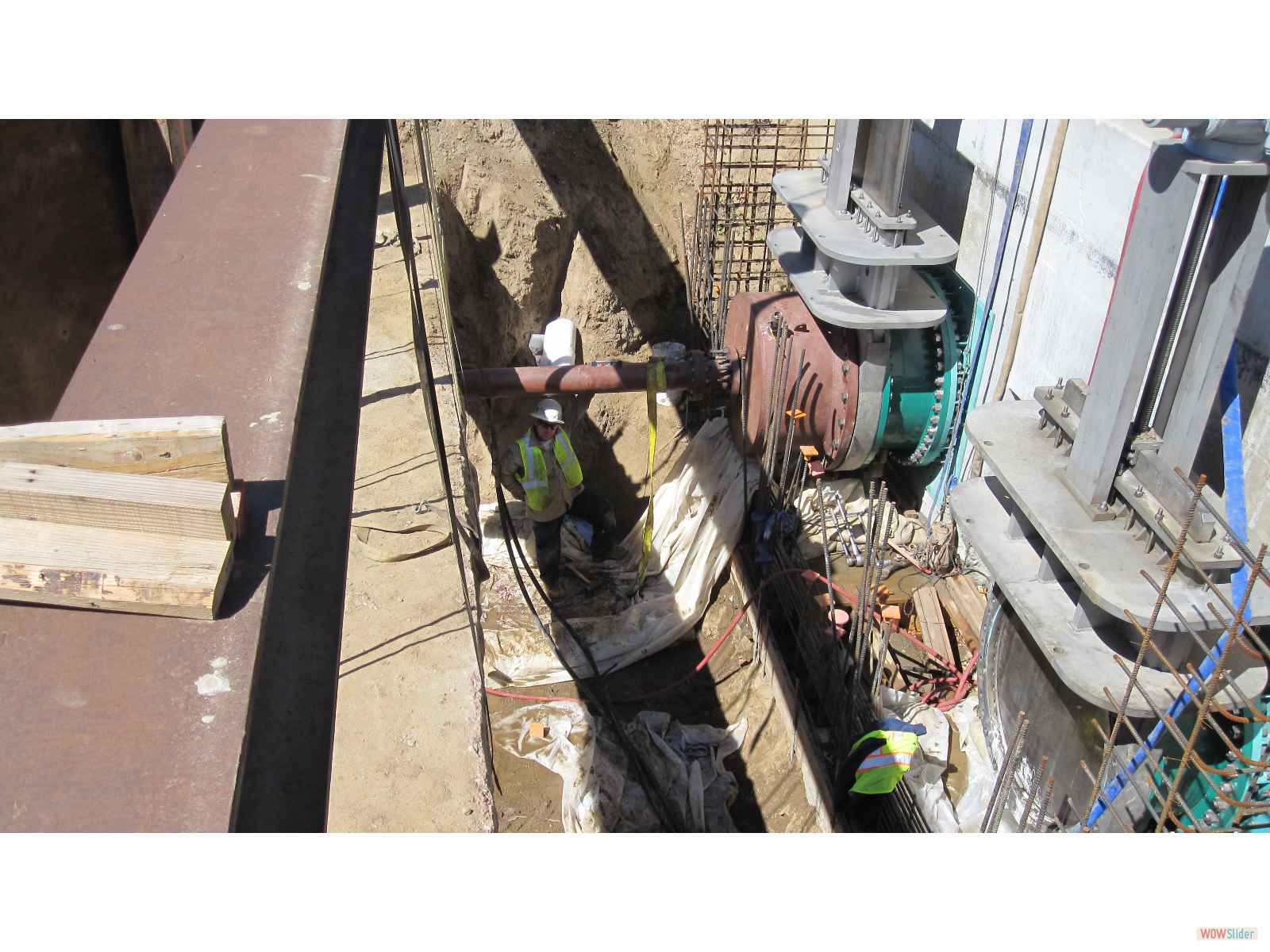

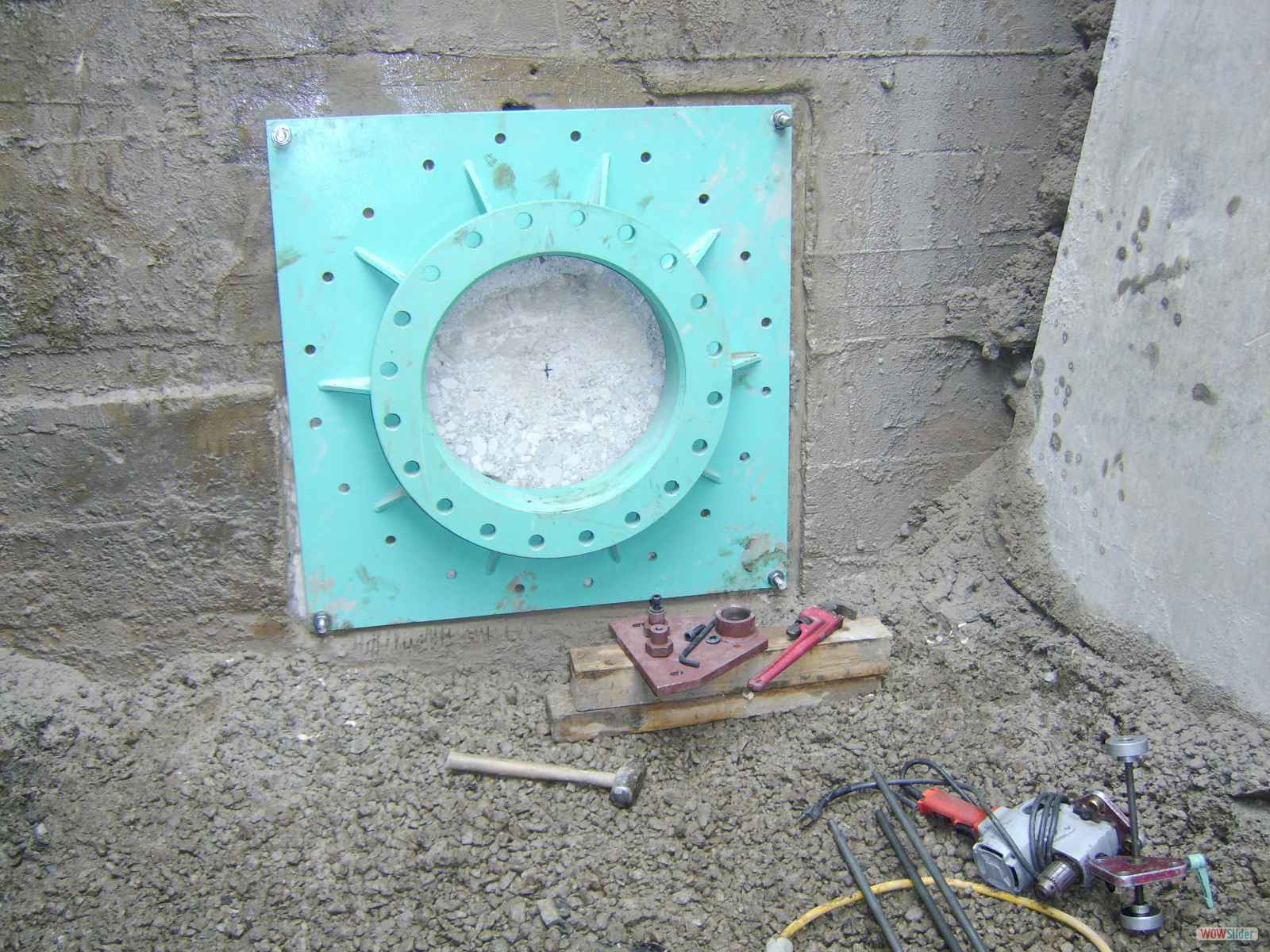

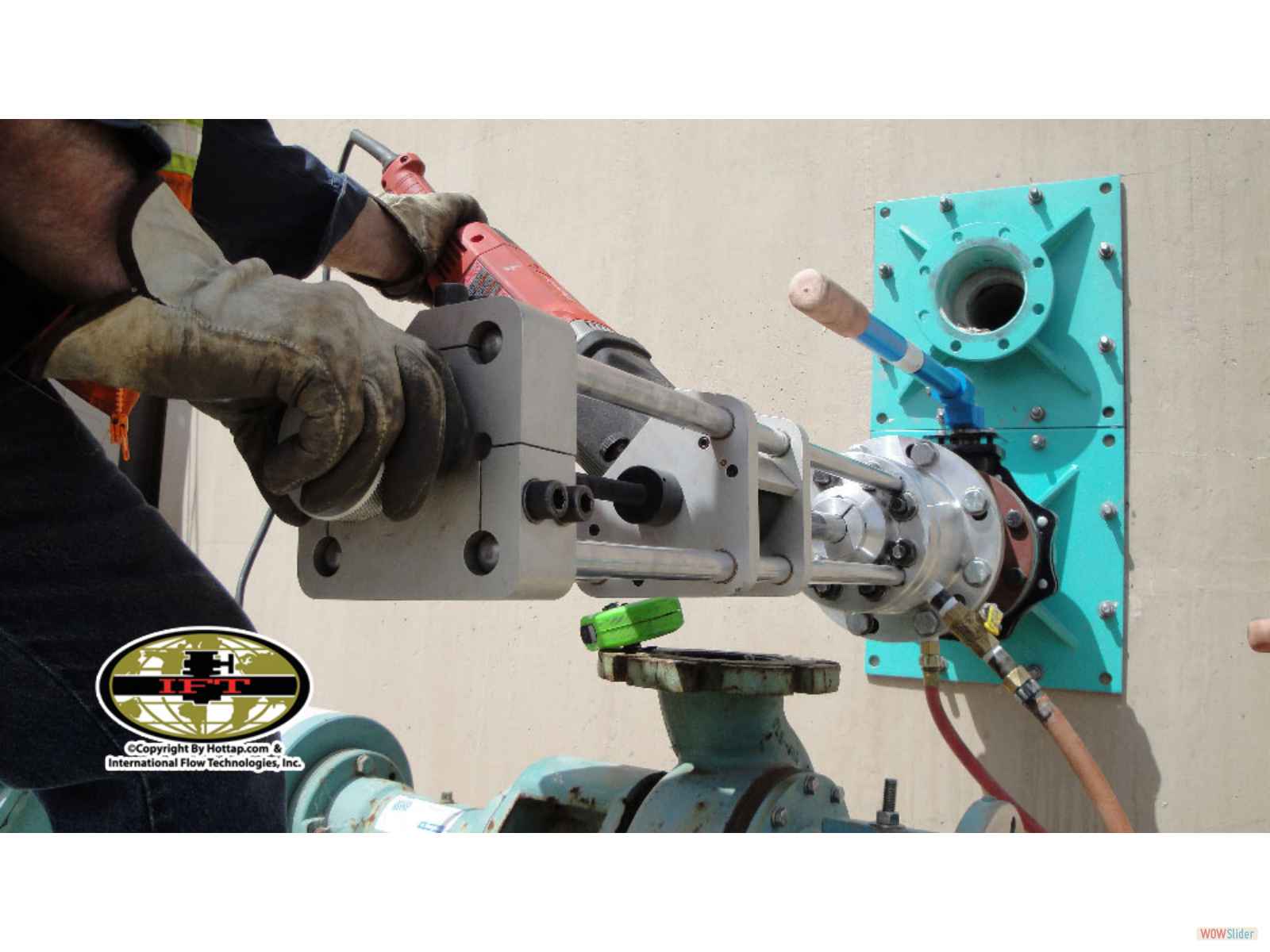

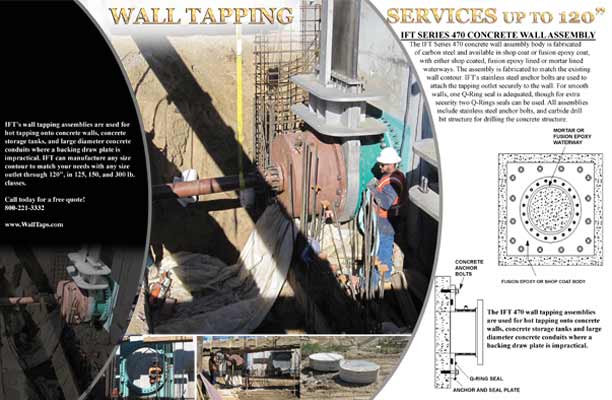

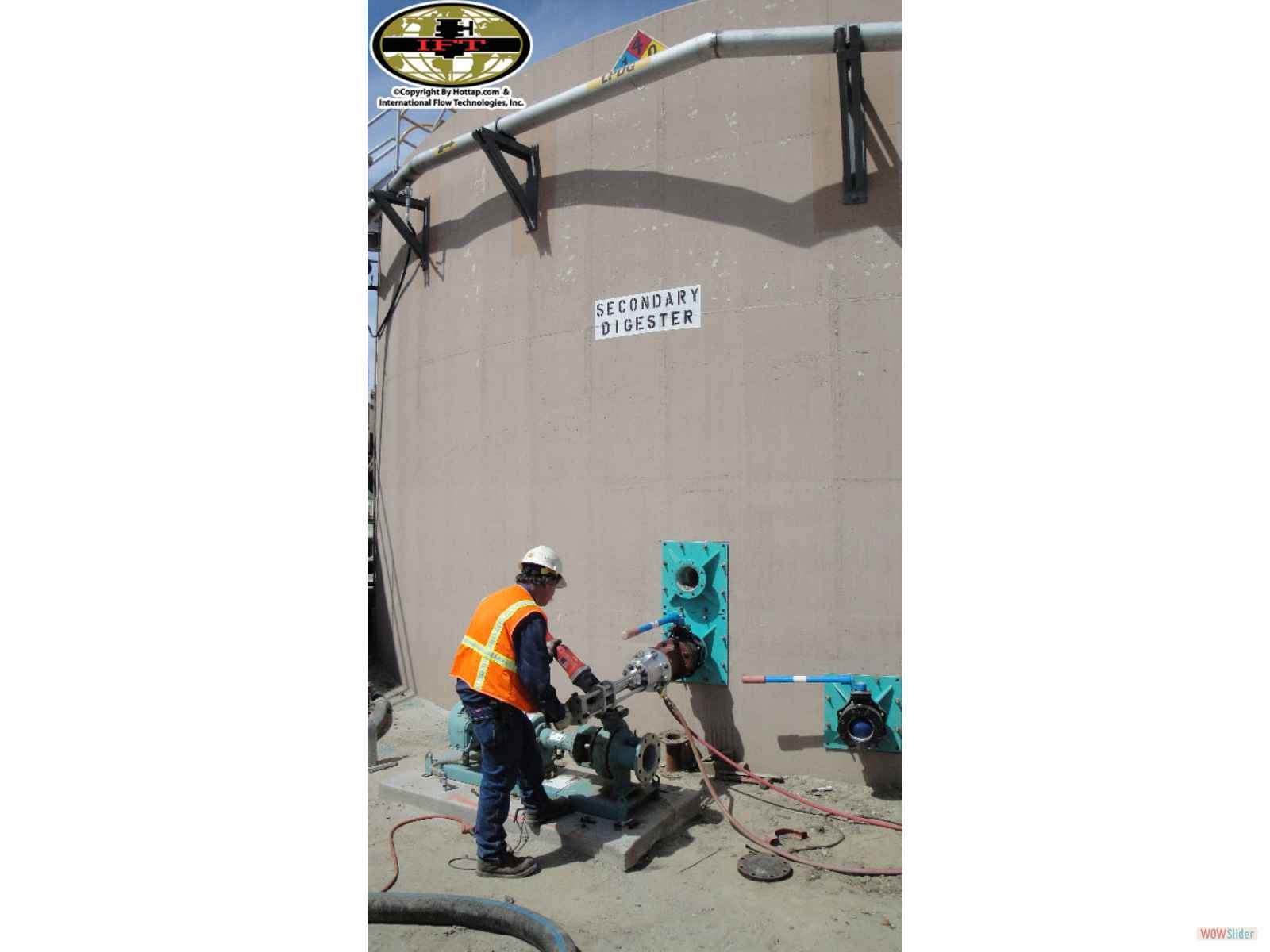

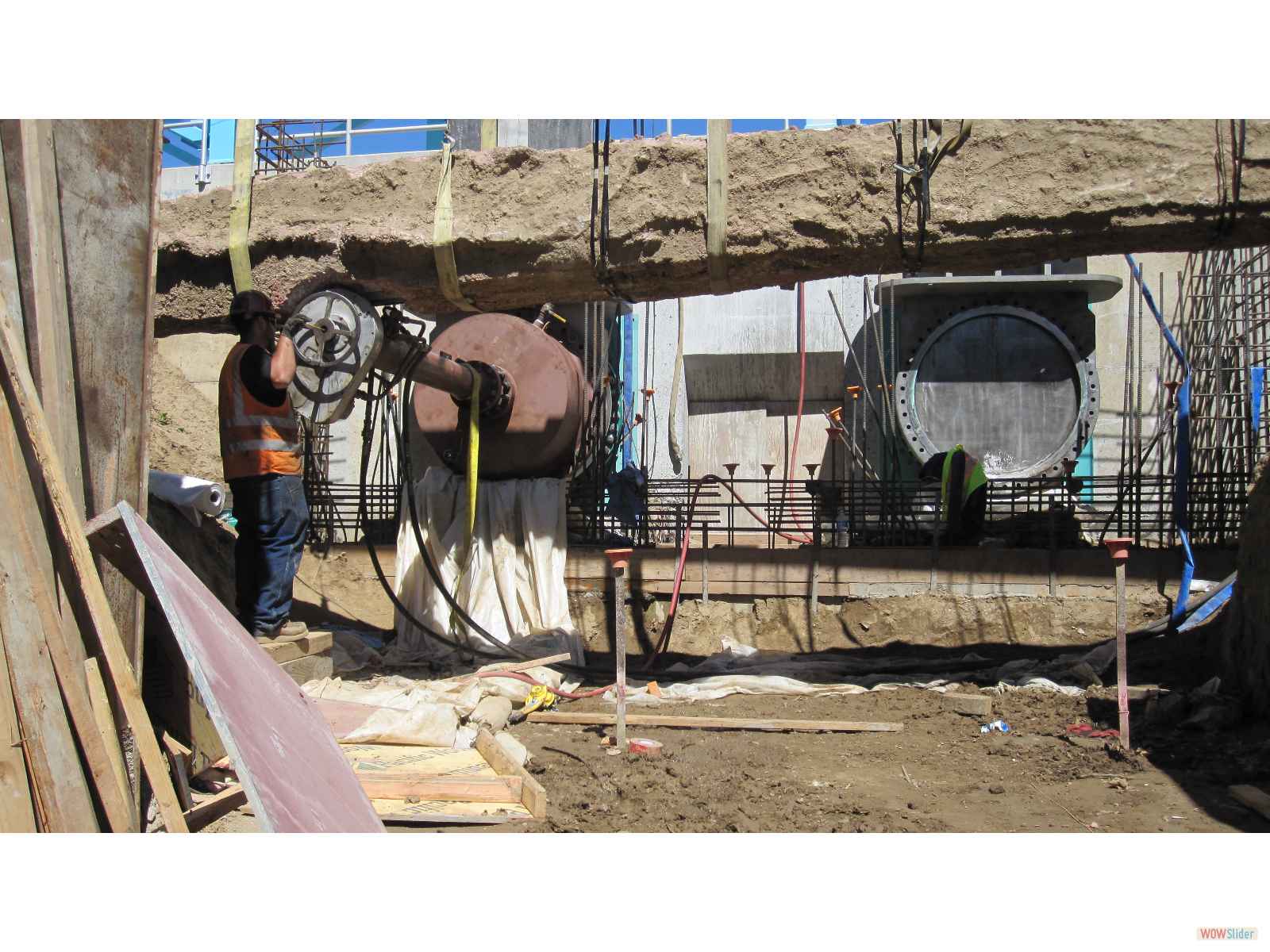

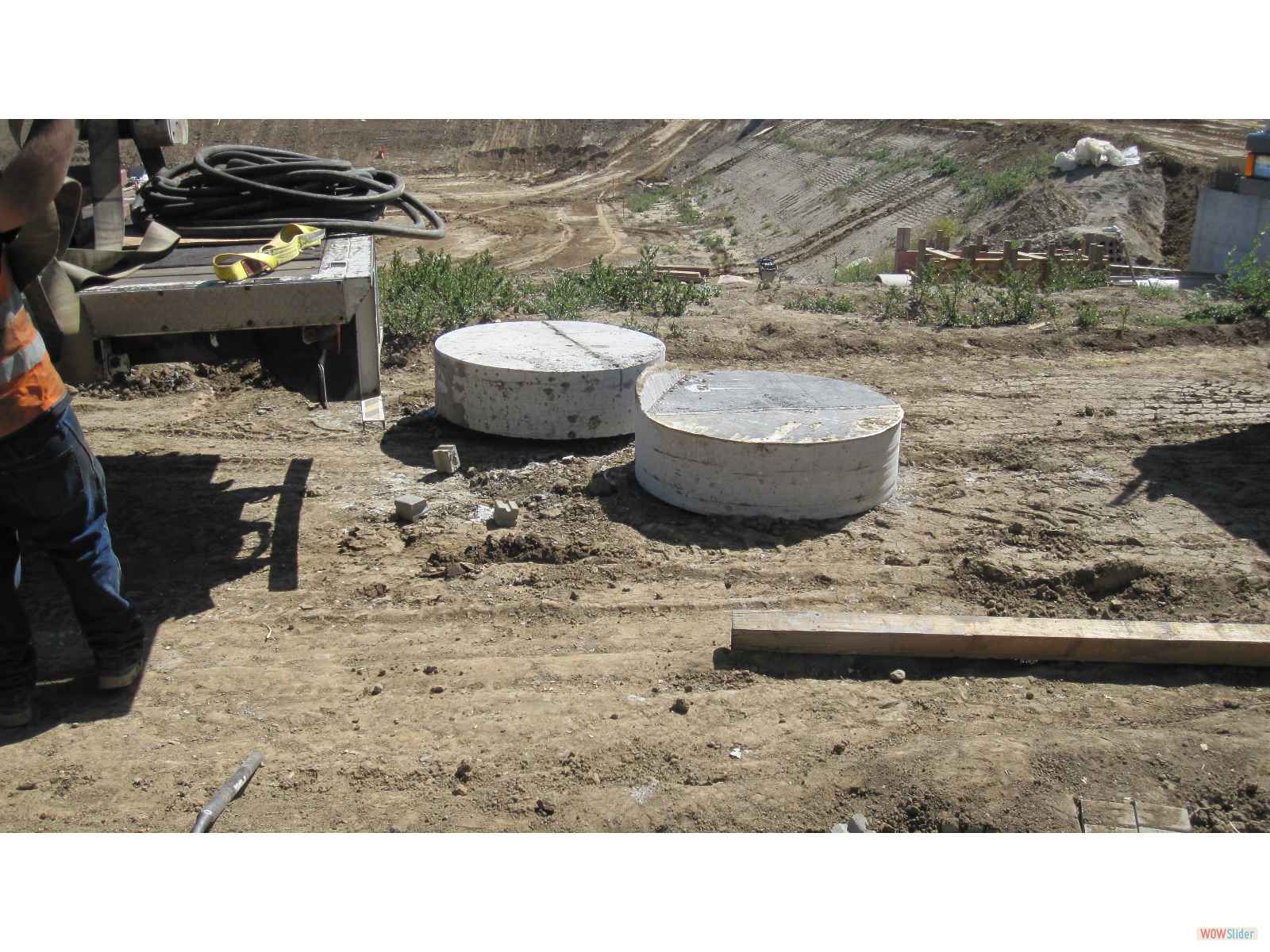

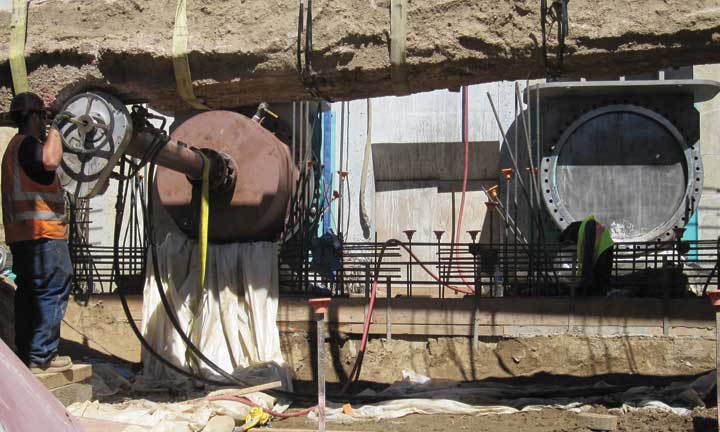

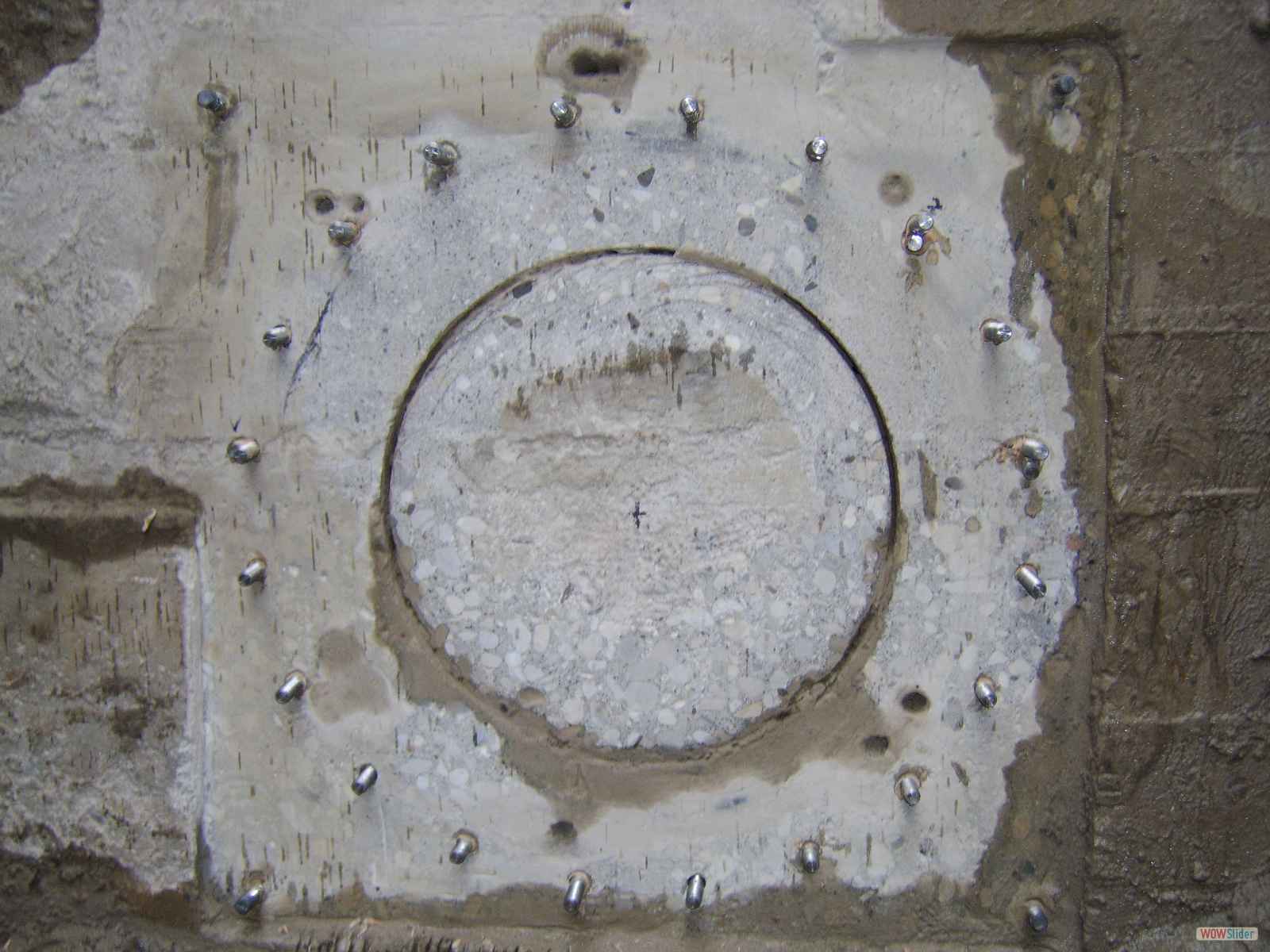

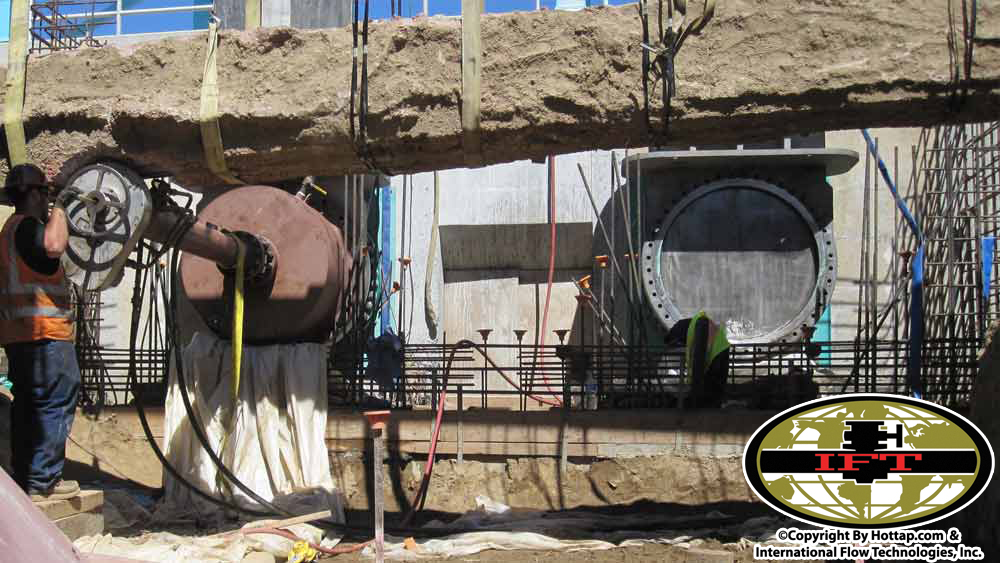

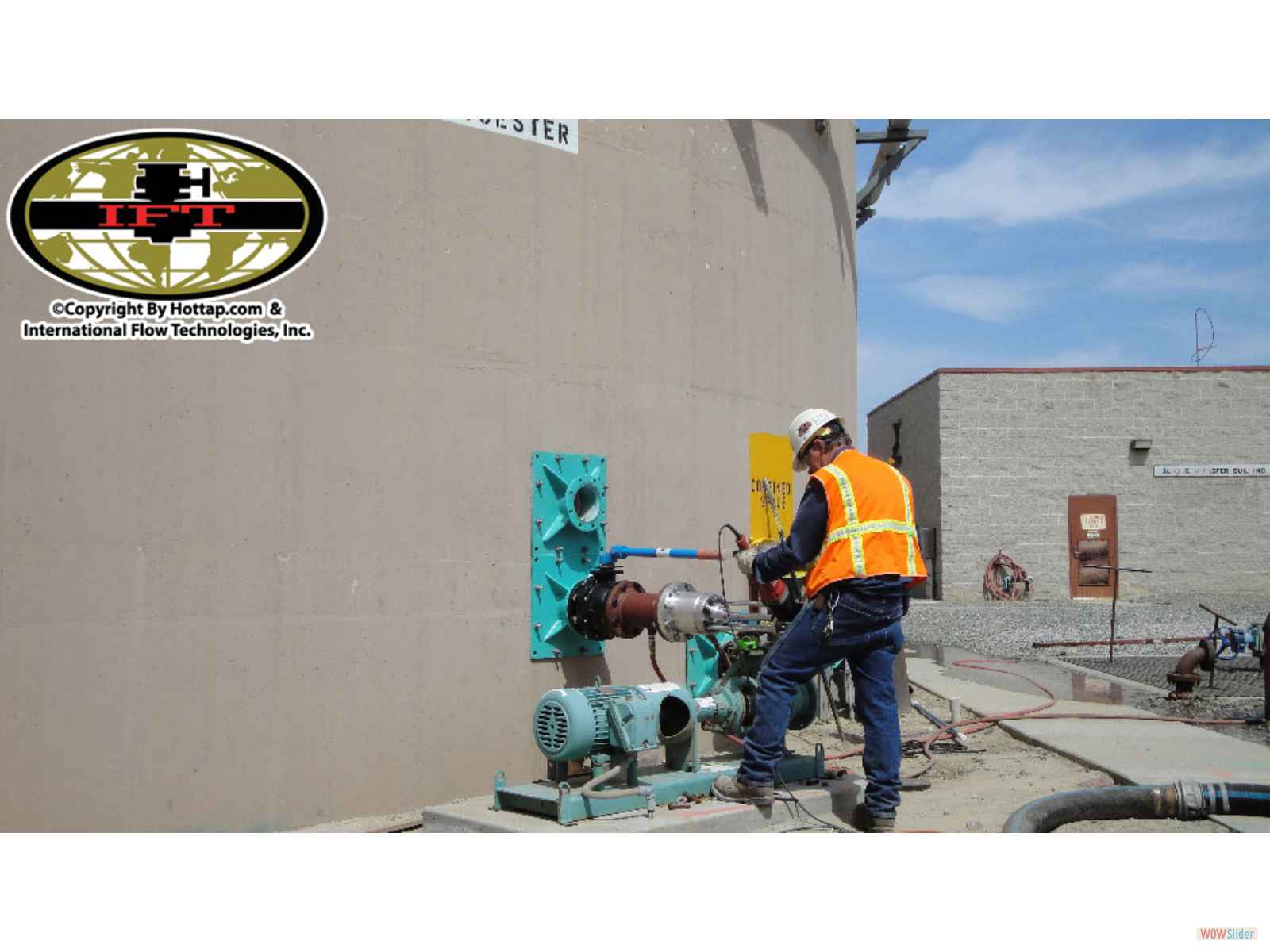

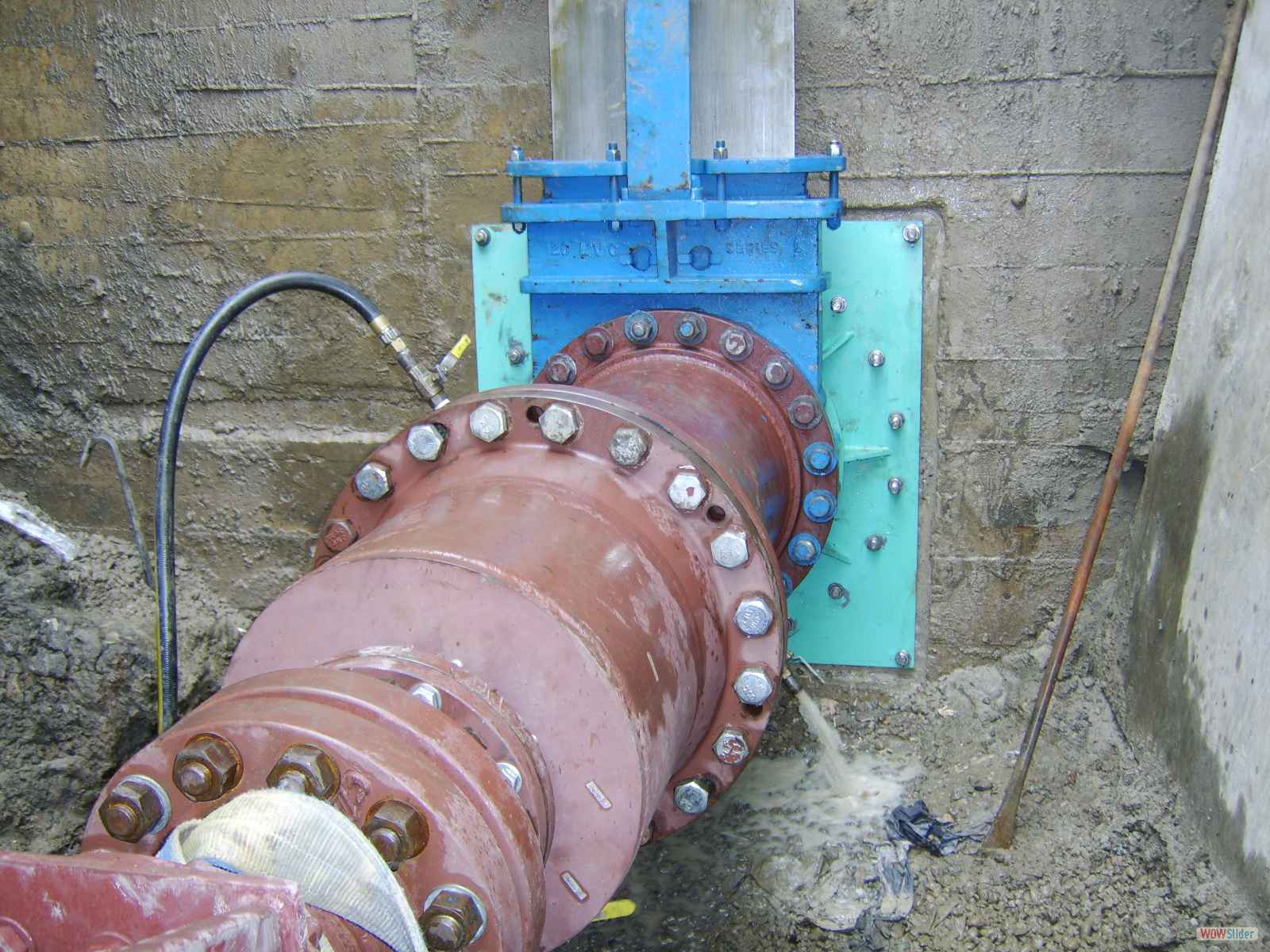

Wall Tap Sizes: Up to 120” wall tapping assemblies are used for hot tapping onto concrete walls, concrete storage tanks, and large diameter concrete conduits where a backing draw plate is impractical. Any thickness of walls can be tapped and 20 feet thick or thicker have been performed. We manufacture any size contour to match your needs with any size outlet, in 125, 150, and 300 lb. classes. The body is fabricated with carbon steel and is available in shop coat or fusion epoxy coat, with either shop coated, fusion epoxy lined or mortar lined waterways. The assembly is fabricated to match the existing wall contour. IFT's stainless steel anchor bolts are used to attach the tapping outlet securely to the wall. For smooth walls, one Q-Ring seal is adequate, though for extra security two Q-Ring seals can be used. All assemblies include stainless steel anchor bolts, and a carbide drill bit structure for drilling the concrete structure.
Our Patented Repair Under Pressure Products allow Hot Tapping Butterfly Valves, Plug Valves or “leaving no valve” after the connection.
Choose your Wall Tapping Company Wisely
- Jeff Maichel

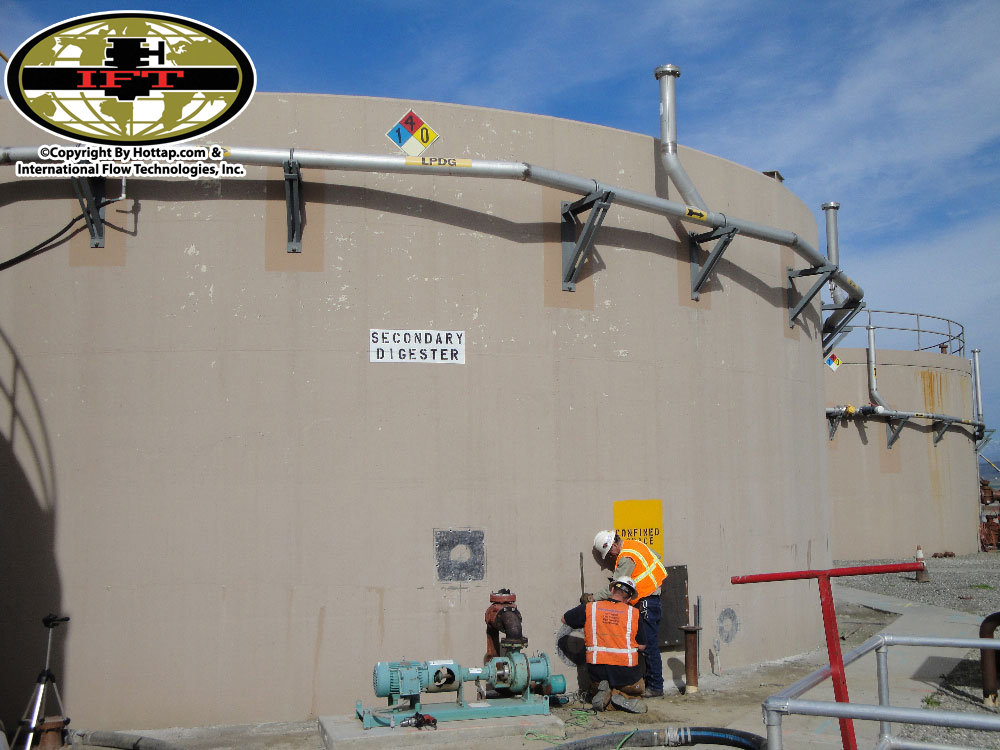

Eastern Municipal Water District Perris, CA.
Location: Regional Sewage Plant San Jacinto, CA.
2 – 6” - Tapping Wall Plates (Fusion Epoxy coated & Stainless hardware)
2 – 6” Flanged Full port Ball valves (American Valve 4000)
2 – 316 stainless Nut bolt and gasket sets
2 – Installation of materials with pressure tests
2 – 6” Hot tapping on concrete lids (apx. 12” thick)
1 – 4” - Tapping Wall Plates (Fusion Epoxy coated & Stainless Hardware)
1 – 4” Flanged Full port Ball valves (American Valve 4000)
1 – 316 stainless Nut bolt and gasket sets
1 – Installation of materials with pressure tests
1 – 4” Hot tapping on concrete lids (apx. 12” thick)
